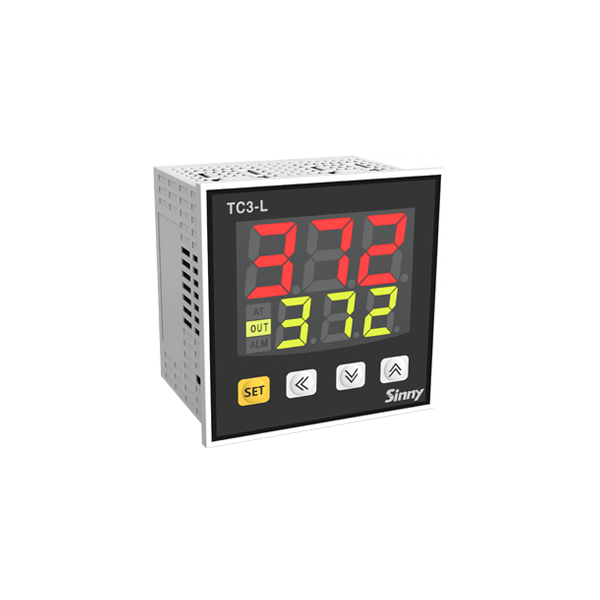

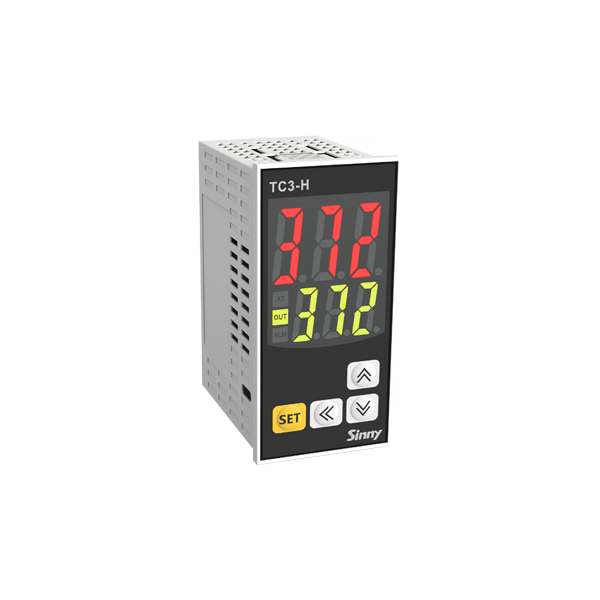

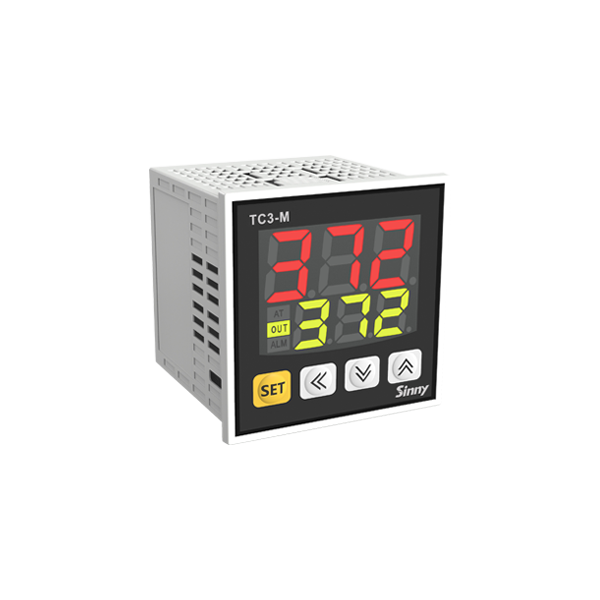

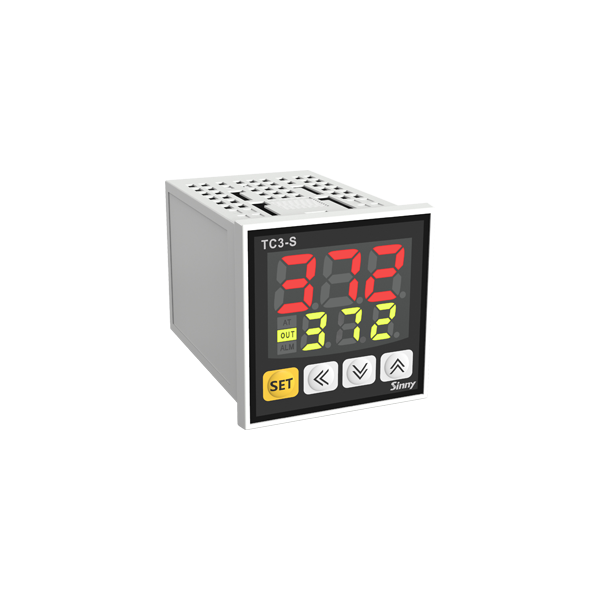

3-Digit Double Display PID Temperature Controller
TC3 Series

3-Digit Double Display PID Temperature Controller

TC3 temperature controller adopts a large character LED display, with a 100ms high-speed sampling cycle and +0.5% display accuracy, 100-240VAC wide voltage, supports universal input, the output can switch Relay/SSR, and can be customized analog output to meet the needs of different working conditions.

Main features Selection Technology Application Download Question Video

Main features

· Diameter depth 75mm

· Large character LED display

· Thermocouple / RTD / Analog input switch function available

· Switch between Relay output and SSR drive output

· RS485 communication output model: communication protocol Modbus RTU

· Enhanced PID+ control algorithm

· Automatic calculation function

· Display error correction function

· Heating/cooling mode selectable

· 12 alarm modes selectable


Large character LED display

Large character LED display

Diameter depth 75mm

Diameter depth 75mm

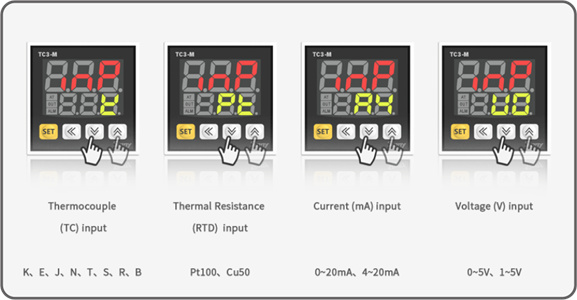

Various Inputs

Various Inputs

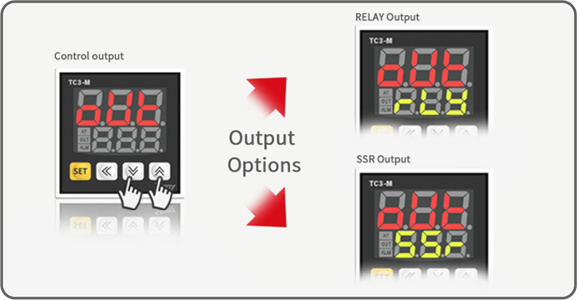

Relay / SSR output switch

Relay / SSR output switch

RS485 communication model

RS485 communication model

PID+ control

PID+ control

Auto tuning

Auto tuning

Display error correction

Display error correction

Heating/cooling mode select

Heating/cooling mode select

12 alarm modes select

12 alarm modes select

  • Large character LED display

    Easy to read

    Large character LED display
  • Various Inputs

    All support

    Various Inputs
  • Relay / SSR output switching

    Flexible

    Relay / SSR output switching
  • PID+ control

    Stable control

    PID+ control

Selection


Product

  • S
  • H
  • M
  • L
  • S
  • H
  • M
  • L

Specifications

Application

Question

  • Q

    [TC3] How to Switch Relay/SSR Outputs

    A

    Quick switching by shortcut keys:

    In the operation mode

    Press and hold the "↓" and "↑" keys simultaneously for 3 seconds.

  • Q

    [TC3] How do I modify the input type?

    A

    Please operate as follows:

    1. Hold the "SET" key for 2s,The [P-1] page appears, press the "↑" key once, and the [P-2] page appears.

    2. In [P-2], press the "SET" key once, the input specification [INP] page appears, adjust it with the "↑" and "↓" keys.

    After adjusting, hold the "SET" key for 3s to save the parameter and return to run mode.


  • Q

    [TC3] What is the error code for 'HHH' or 'LLL'

    A

    Check the following conditions:

    1. whether the input sensor is damaged

    2. whether the input wiring is correct

    3. Whether the input type of the controller [INP] is matched with the sensor

    4. Whether the error correction [EC] parameter is set correctly

    5. Whether the parameters of the lower range limit [SLL] and upper range limit [SLH] are set correctly.
