TX4 Temperature Controller
TX4 Series

TX4 Temperature Controller

TX4 Temperature Controller, economical 4-digit dual-display PID temperature controller with 100ms high-speed sampling period and ±0.5% display accuracy. 50mm depth, exquisite design supports more installation environments and ideal temperature control in various applications.

Main features Selection Technology Application Download Question Video

Main features


·PID process programmable temp controller

·types of K E J PT100 CU50 digital temperature controller

· Heating/cooling mode selectable Temperature control

·oven temperature controller

·±0.5 precision temperature controller

· 12 alarm modes selectable

· Thermocouple / RTD input switch function available

· Compact, space-saving design with 50mm depth:30% rear-length size reduction compared to similar-sized models from Sinny

· Shell made of Japan's high-grade PC material, V-0 flame retardant grade

· Thermocouple / RTD input switch function available

· Fahrenheit / Celsius unit switch function available

· Switch between Relay output and SSR drive output

· Enhanced PID+ control algorithm

· Automatic calculation function

· Display error correction function

· Heating/cooling mode selectable

· 12 alarm modes selectable








Diameter depth 50mm

Diameter depth 50mm

Display error correction

Display error correction

LED display

LED display

12 alarm modes select

12 alarm modes select

PID+ control

PID+ control

TC / RTD input switch

TC / RTD input switch

Temperature unit switch

Temperature unit switch

Relay / SSR output switch

Relay / SSR output switch

Heating/cooling mode   select

Heating/cooling mode select

Auto tuning

Auto tuning

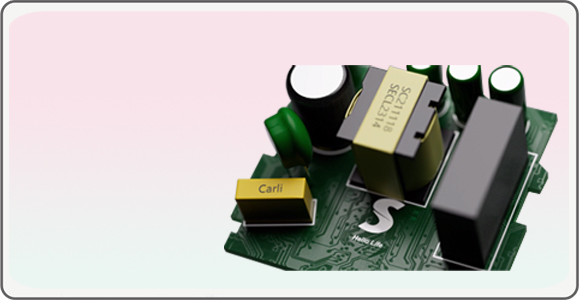

  • High-configuration components

    Strict quality requirementsregardless of cost,only for high quality

    High-configuration components

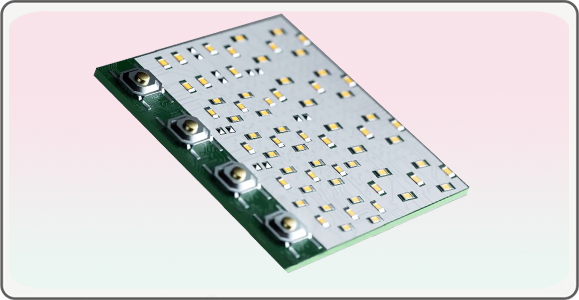

  • World-class LED lamp beads

    With long life, high consistencyand strong reliability

    World-class LED lamp beads

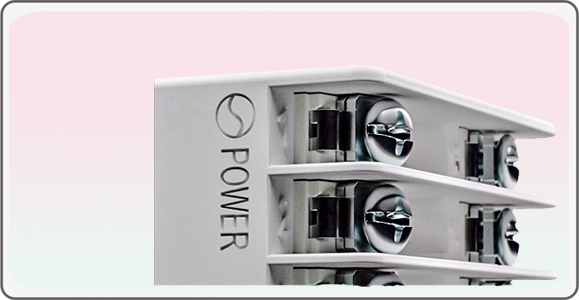

  • V-0 flame retardant shell

    Japanese PC plastic is safe and secure

    V-0 flame retardant shell

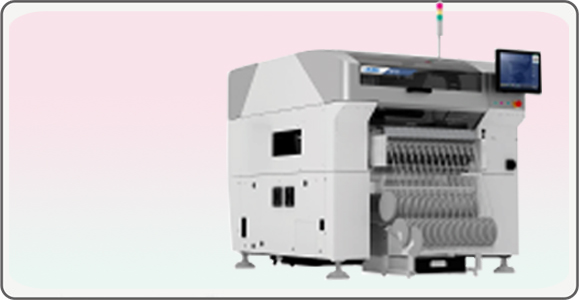

  • Japan JUKl SMT production line

    strict product quality assurance

    Japan JUKl SMT production line

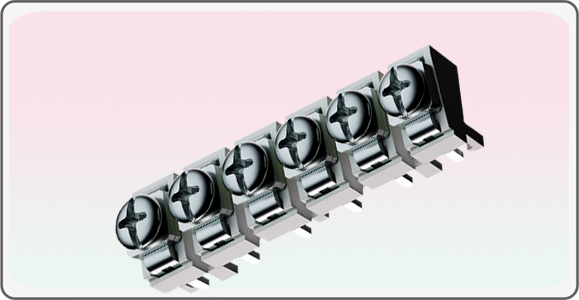

  • In-mold tapping technology

    Focus on user detaiils,thread slip rate as low as 1 in 150,000

    In-mold tapping technology

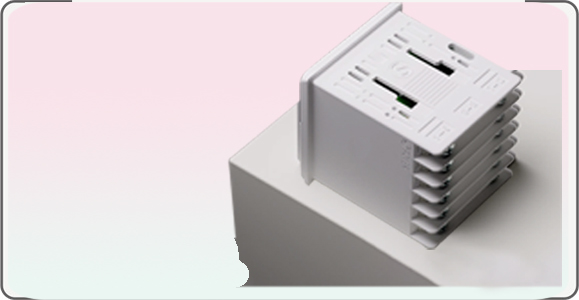

  • 50mm ultra-small size

    Effectively saves installation space

    50mm ultra-small size

Selection



Product

  • pid temperature controller
  • pid temperature controller

Specifications



Application

Question

  • Q

    [TX4] How to Switch Relay/SSR Outputs

    A

    Quick switching by shortcut keys:

    In the operation mode

    Press and hold the "↓" and "↑" keys simultaneously for 3 seconds.

  • Q

    [TX4] How do I modify the input type?

    A

    Please operate as follows:

    1. Hold the "SET" key for 2s,The [P-1] page appears, press the "↑" key once, and the [P-2] page appears.

    2. In [P-2], press the "SET" key once, the input specification [INP] page appears, adjust it with the "↑" and "↓" keys.

    After adjusting, hold the "SET" key for 3s to save the parameter and return to run mode.


  • Q

    [TX4] What is the error code for 'HHHH' or 'LLLL'

    A

    Check the following conditions:

    1. whether the input sensor is damaged

    2. whether the input wiring is correct

    3. Whether the input type of the controller [INP] is matched with the sensor

    4. Whether the error correction [EC] parameter is set correctly

    5. Whether the parameters of the lower range limit [SLL] and upper range limit [SLH] are set correctly.
